Solenoid Valve Installation Precautions

Dec. 02, 2019

The waterproof solenoid valve opens or closes the drain hole by controlling the movement of the valve body, and then pushes the piston of the cylinder through the pressure of the oil, thus driving the mechanical device to operate. Water Inlet Solenoid Valve Factory shares with you.

Waterproof solenoid valve in a closed cavity, in a different location to open a hole, each hole connection, electromagnetic valve, pipe cavity piston is among, both sides are two electromagnets, which face the magnet coil electricity body which side will be attracted to, cleverly will pilot solenoid valve, manual valve and throttle valve at an organic whole, pilot valve after accepting electrical switch drive the main valve action. Adjusting screw can adjust the applicable range of medium viscosity and main valve switching time, and can be compensated after the main valve wear, screw can also be used to preset the solenoid valve automatic control when the maximum or minimum flow.

The valve opening and closing time of the waterproof solenoid valve can be adjusted to meet various requirements, effectively prevent water hammer damage, and the main valve wear can be compensated, thus extending the service life of the valve.

The Electromagnetic valve is an industrial device controlled by electromagnetism. It is an automatic basic component used to control the fluid. It is an actuator, not limited to hydraulics and pneumatics. Used in industrial control systems to adjust the direction, flow, speed, and other parameters of the medium.

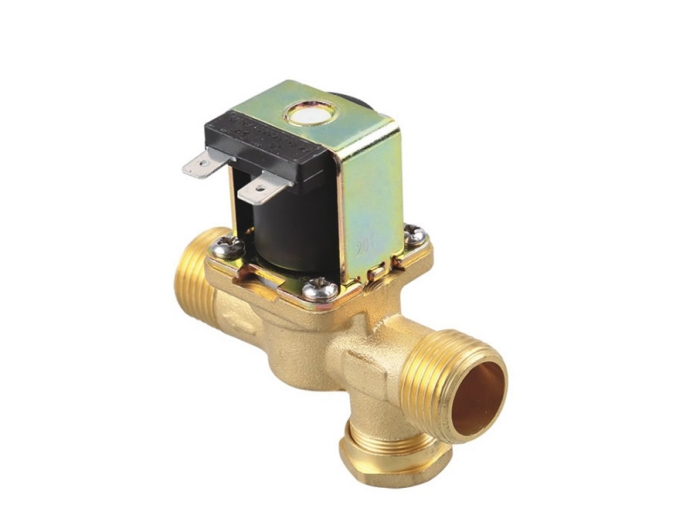

Water Purifier R.O. Solenoid Valve

1. should pay attention to the installation of the arrow on the valve body should be consistent with the direction of the medium. Do not install it where there is direct dripping or splashing. Solenoid valve should be installed vertically upward;

2. the solenoid valve should ensure that the power supply voltage is rated voltage within the range of 15%-10% normal operation;

3. After the solenoid valve is installed, there shall be no reverse pressure difference in the pipeline. And need to electrify several times, make it suitable for temperature before formal use;

4. The solenoid valve shall be thoroughly cleaned before installation. The incoming medium shall be free of impurities. Install strainer before valve;

5. when the solenoid valve failure or cleaning, in order to ensure the continued operation of the system, should install the bypass device.

Our company also sells Water Purifier R.O. Solenoid Valve, welcome to contact us.
