  • Water Inlet Solenoid Valve FCD.3-158K

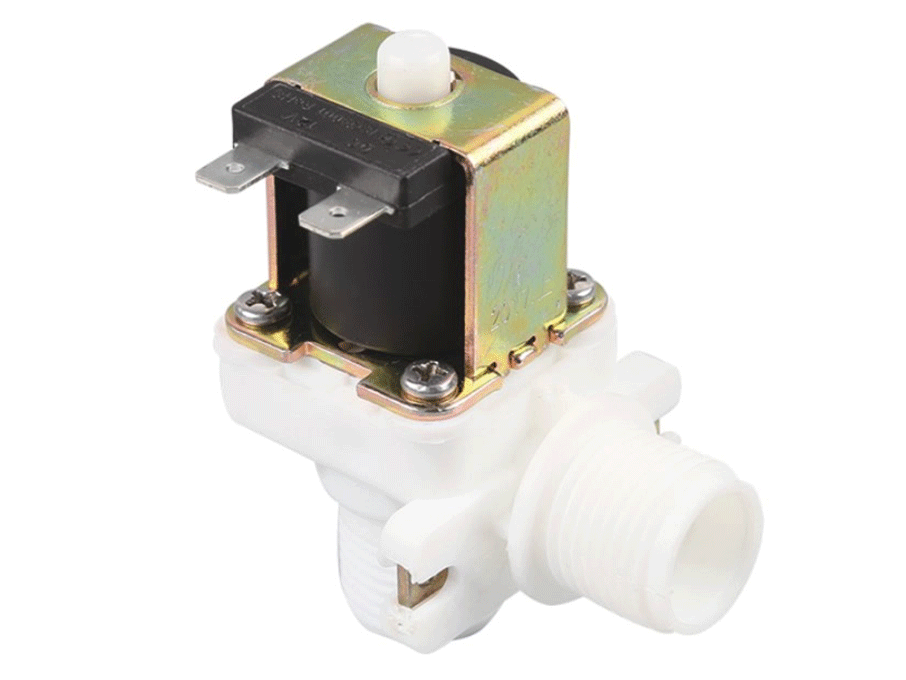

Water Inlet Solenoid Valve FCD.3-158K

Spec.: FCD.3-158K

Type: Angle Solenoid Valve Series


PRODUCT DESCRIPTION

Spec.: FCD.3-158K

Type: Angle Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.

2. If the user has special needs, please specify when ordering.


Application:

Angle solenoid valve are mainly used in water dispenser, water purifier.

At present, we usually supply these angle solenoid valve to the water dispenser and water purifier manufacturers from home and abroad.


Advantage:

Having rich experience in this type angle solenoid valves manufacturing.

The installation and maintenance of the angle solenoid valves are more convenient.

Having diversity of the angle solenoid valves, so we can provide this type solenoid valves with different connector size to our customer.


Specification:

Model

FCD.3-158K

Rated voltage:

DC9V/DC12V/DC24V/DC36V/DC48V/DC110V

Working pressure

0.020.8Mpawith pressure

00.05Mpawithout pressure

Inlet

G1/2” male thread

Medium temperature:

050℃

Outlet

G1/2” male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
