  • Water Treatment Solenoid Valve FCD.3-478

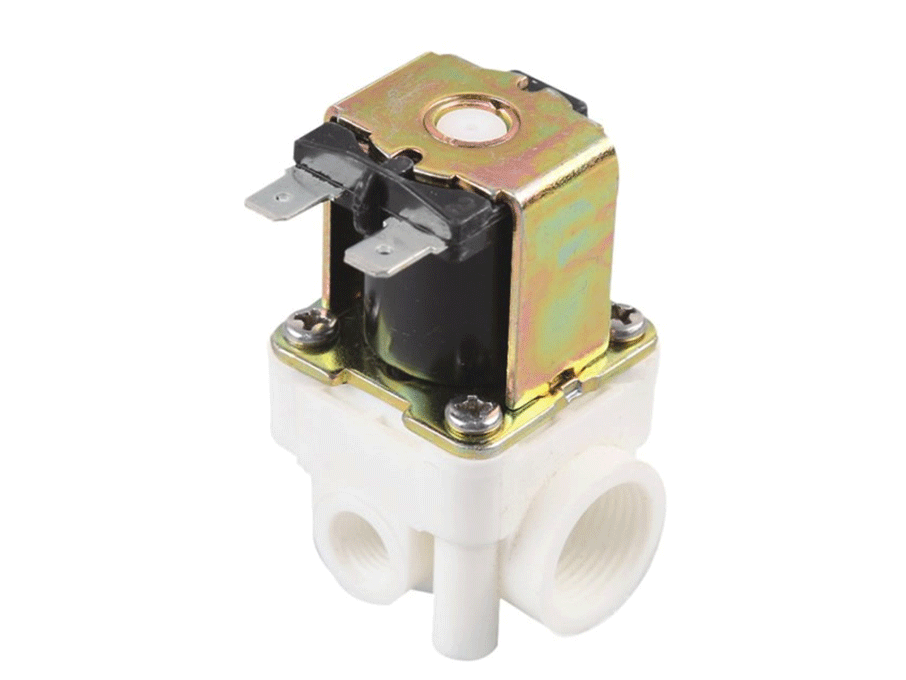

Water Treatment Solenoid Valve FCD.3-478

Spec.: FCD.3-478

Type: R.O.solenoid Valve Series


PRODUCT DESCRIPTION

Spec.: FCD.3-478

Type: R.O.solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the 'model meaning'.

2. If the user has special needs, please specify when ordering.


Application:

R.O. Solenoid Valve is mainly used in water purifier, water dispenser etc.

At present,We usually supply these R.O.solenoid valves to the water purifier and water dispenser manufacturers from home and abroad.


Advantage:

The installation and disassembly of the solenoid valve is very convenient

May according to customer requirements to customize corresponding size of the connector


Specification:


Model

FCD.3-478

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure

0.020.8Mpawith pressure

00.05Mpawithout pressure

Inlet

G3/8”female thread

Medium temperature:

050℃

Outlet

G1/8”male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
